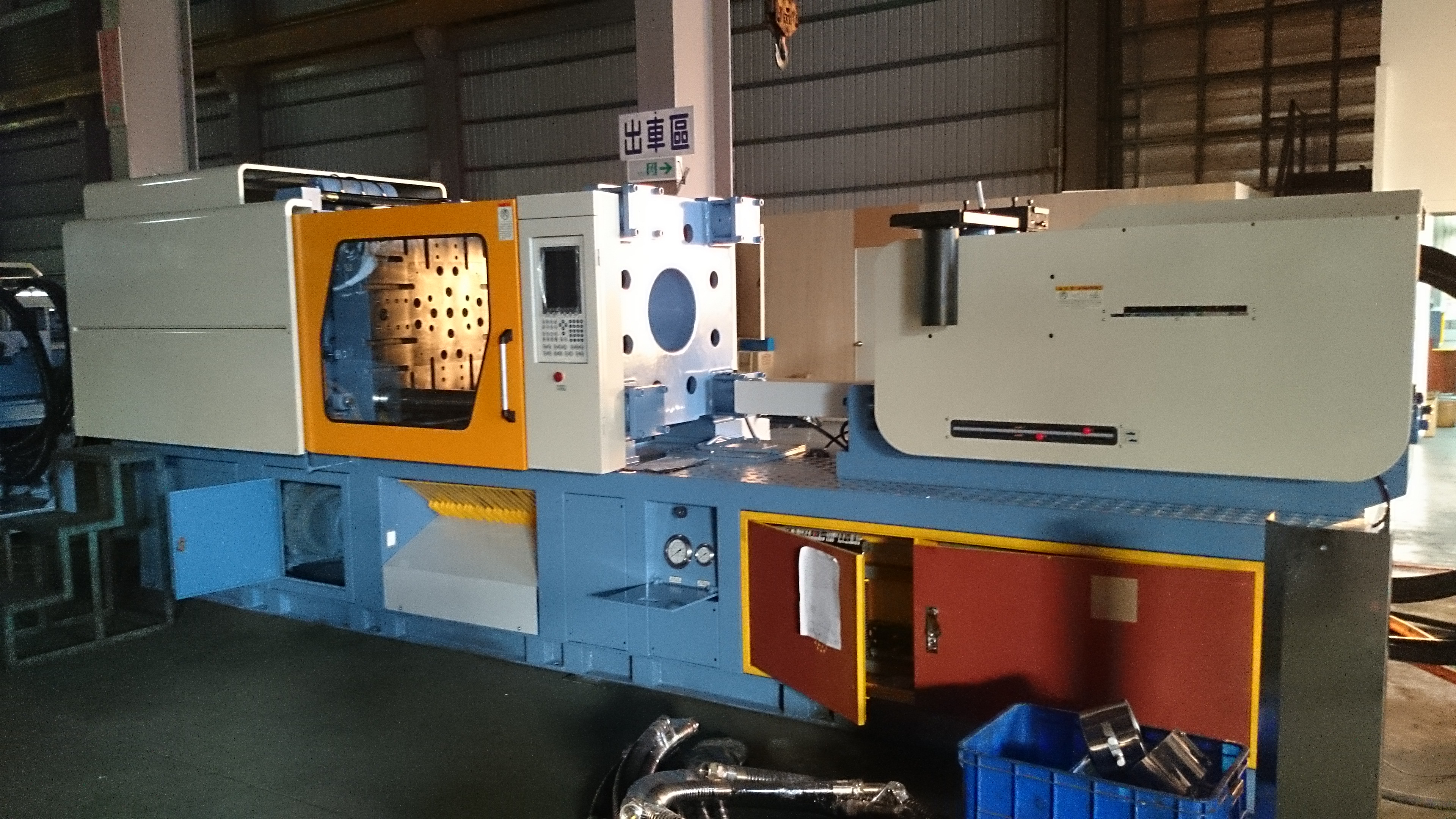

Injection Molding Machine

ITEM v.s Series

C or (C + S)

V or (V + S)

E or (E + S)

MII

Toggle

Inward/Outward

Outward Toggle

Inward Toggle

Inward Toggle

Without Toggle

2-Platen Type

Clamping Force

(Focus on)

Central Area of Platen

Upper and Lower

Area of Platen

Upper and Lower

Area of Platen

Direct Clamping

By 4 Hydraulic Cylinders

Mold Thickness

Tons/Models are different between

C & V

Almost same to each other

Mold Capacity is larger than other series

Clamping Stroke

Longer than V, E series

Almost same to each other

Longer than other series

Main Features

The most complete series;

Mainstream Model

100ton~2200ton

(Can be larger than 3000ton)

Structure is same as

E series

30ton~520ton

Structure is same as

V series

Accessories’ class & level are higher than V series

30ton~520ton

Clamping Force is lower than Toggle Types

Machine’s Size is smaller than others

550ton~2200ton

Pricing

(Compare on the same ton)

Most economic series

Pricing is lower than

V series

Pricing is lower than

E series

Pricing is higher than V series

—

Apply to Product/Field

General Purpose

General Purpose

More precise products

Lower added value,

Less requires quality

Especially for “Deep Cavity” products;

Big size of Home Hardware

Plasteam

Opinion

Recommendation

Recommendation

Customers can choose options for

V series to become

E series

For Special Fields

Current Customers

[P] C450S x 1set, C350S x 1set, C350 x 2sets

[F] C1800S+2200J x 1set

Series

v.s

TONs

C

V or E

MII

(without toggle)

R

(Dual color)

D

(Direct Clamping)

VF

(Vertical)

AE

(Electric Driven)

30

V30

60

V60

D60

VF-60

AE60S

90

V90

D90

VF-90

100

C100

AE100S

120

V120

D120

VF-120

130

C130

150

V150

VF-150

AE150S

160

C160

R160

D160

200

D200

VF-200

AE200S

220

C220

V220

R220

280

C280

300

V300

D300

AE300S

320

R320

350

C350

400

V400

420

R420

450

C450

520

V520

550

MII-550

600

C600

620

R620

700

MII-700

800

C800

820

R820

900

MII-900

1000

C1000

1020

R1020

1250

MII-1250

1300

C1300

1600

MII-1600

1800

C1800

2200

C2200

MII-2200

2600

*C2600

3000

*C3000

Japan/“DAIKIN”

Super Unit

including Controller, Motor, Pump (w/Sensor)

(Analog Command Input,

High-Accuracy Type)

1) Unique Offer from DAIKIN!  Unparalleled energy-saving and high-accuracy servo-based pump PQ control system.

2) Customers can choose different types and different quantities of DAIKIN Super Unit in order to increase Injection SPEED!

*Customs-made spec is available!

3) Additional Costs for exchanging from Traditional/Standard motor + pump into DAIKIN Super Unit

80L (11KW):

130L (15KW):

200L (22KW):

250L (37KW):

300L (45KW):

[MEMO] (80L) – “L” means the flowing volume of pump motor

[FEATURES]

1. Energy Saving

Energy savings at least 60% greater than conventional fixed displacement pump systems (The energy-saving effect varies depending on the operation conditions.)

2. High Accuracy with Simple Operation

High-Accuracy servo control according to analog pressure (P) / flow rate (Q) voltage commands

3. Sustained High-pressure Holding Control

Sustained high-pressure control with energy savings by selecting the pump flow rate

4. Faster Shipping Adjustment

Simple adjustment to start a trial run on the machine, meaning a shorter adjustment time

5. Improving the Working Environment

Reduced noise during operation

6. Exceeds Standard of High Efficiency Motor regulation

Incorporating a motor dedicated to servo-based rotational speed control

For more details, pls refer to: http://www.daikinpmc.com/en/special/sut_hp_hfr/index.html
