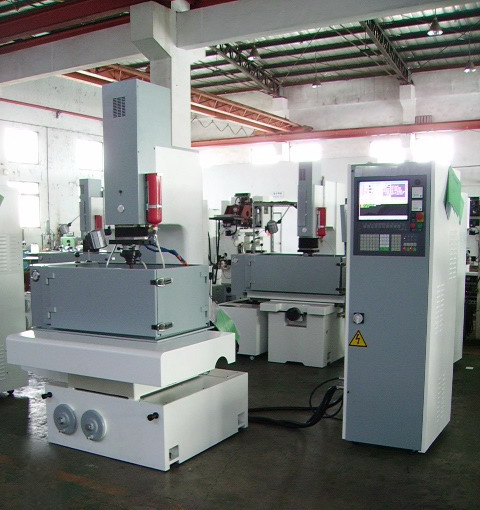

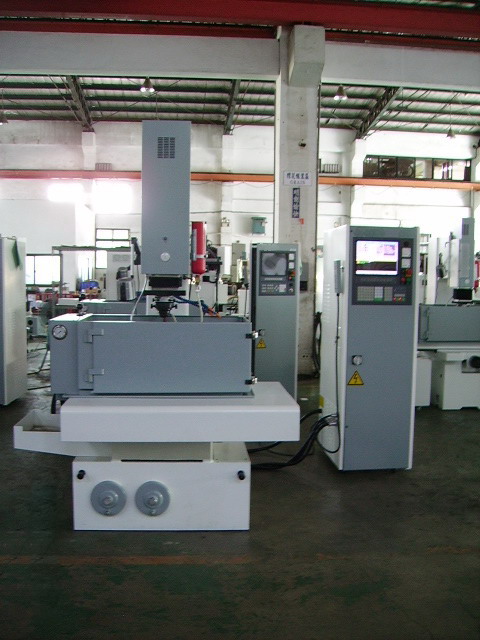

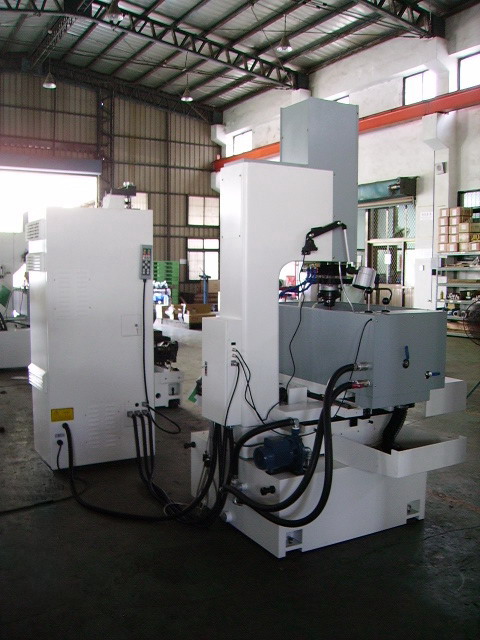

[Specification of Shipped CNC Electric Discharge Machine]
|
Capacity of Work Tank工作油槽容積
|
900x520x400 mm (35.4×20.5×15.7 inch)
|
|
Work Table Size工作台尺寸
|
600×350 mm (23.6×13.8 inch)
|
|
Longitudinal Travel (X-Axis)左右移動行程(X軸)
|
400 mm (15.7 inch)
|
|
Cross Travel (Y-Axis)前後移動行程(Y軸)
|
300 mm (11.8 inch)
|
|
Spindle Travel + Headstock Travel
Z Axis Travel (Z-Axis)主軸上下行程(Z軸)
|
300 mm (11.8 inch)
|
|
Distance Between Platen to Table
主軸端面至工作台面距離
|
320~620 mm
(12.6~24.4 inch))
|
|
Max. Electrode Weight最大電極垂重
|
100 kg
|
|
Max. Workpiece Weight最大工件重量
|
500 kg
|
|
Max. Machining Current最大加工電流
|
60 A (90 A – Optional選配)
|
|
Max. Power Input最大輸入電力
|
7 KVA (10 KVA)
|
|
Max. Machining Rate最大加工速度
|
400 mm3/min (600 mm3/min)
|
|
Min. Electrode Wear Ratio最小電極消耗比
|
0.12 %
|
|
Best Surface Finished 最佳表面粗細度
|
Ra 0.2 μm
|
|
Min. D.R.O. Resolution光學尺最小單位
|
0.001 mm
|
|
Fluid Tank Capacity油箱容量
|
350 L
|
|
Machine Weight機器淨重
Generator Weight電控箱淨重
Oil Chiller Weight
|
1200 kg
320 kg
72 kg
|
|
Machine Dimensions機器尺寸(LxWxH)
|
2240x1450x2530 mm (88x57x99.6 inch)
|
Standard Accessories:
1) Toolbox
2) Work Head
3) Automatic Fire Extinguisher
4) Work Lamp
5) Filter
Ordered Options:
1) Standard Oil Chiller
2) System 3R Clamping Tools:
(A) Adapter Plate for 3R-600.24-S
(B) Macro Standard Kit: 3R-600.24 + 3R-605.2 + 3R-651.7E-XS
(C) Macro Block
(D) Drawbar for Manual Block
(E) Tilting Head

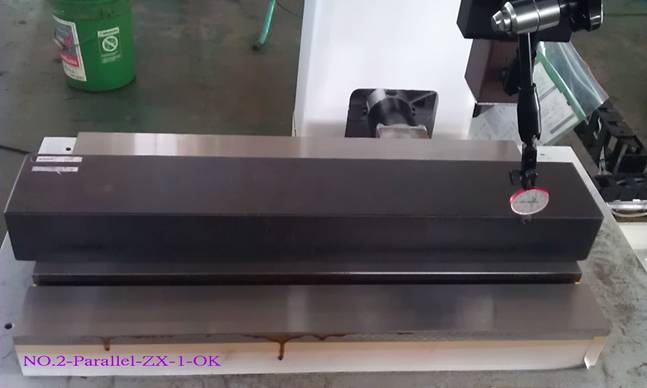

Inspection/Test Run

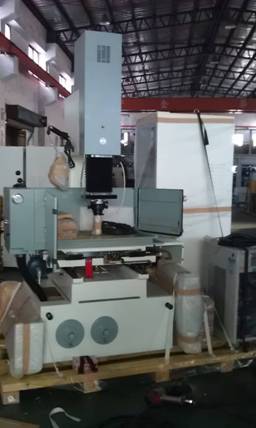

Packaging/Shipment
Installation/Start-Up/Commissioning
Due to the drawings/pictures were provided by the customers/manufacturers, which is chiefly concerned with some business confidential secrets and intellectual property rights; we need to make them vague without showing very detailed dimensions!
All specification and designs are subject to change without prior notice due to constant research and development.
Please feel free to contact us should you require any further details~
