CNC Wire Cutting Machine

　



[Specification of Shipped Wire Cut EDM (Submerged Type)]



Max. Workpiece Size最大工件尺寸(LxWxH)

700×520x295 mm

Work Table Size工作台尺寸

640×500 mm

Max. Workpiece Weight最大工件重量

500 kg

Drive & Servo傳動系統

5 axes AC Servo 5軸AC 伺服

Simulations Axis可同動軸數

X / Y / U / V (4 axes)

X/Y Axis Travel X/Y軸行程

400/ 300 mm

Z Axis Travel Z軸行程

300 mm

U/V Axis Travel U/V軸行程

100/100 mm

Wire Diameter Range可使用線徑

Ø 0.1~0.3 mm

Max. Taper Angle (°)最大切割斜度

(Workpiece Thickness工件厚度)

±22.5

(100 mm)

Max. Wire Bobbin Load最大軸線負載

6 kg

Conductivity水質控制(導電率)

Automatic自動

Water Tank Capacity水箱容量

570 L

Machine Weight機器淨重

Generator Weight電控箱淨重

Water Chiller Weight

Water System Weight

2000 kg

320 kg

94 kg

400 kg

Machine Dimensions佔地面積(LxWxH)

3050x2200x2150 mm



Standard Accessories:

1) Automatic Vertical Alignment Jig

2) Power Feet Contact

3) Filter

4) Clamping Tool

5) Wire Guide (Ø0.25 mm) / upper & lower

6) Brass Wire (Ø 0.25 mm) / 3 kg

7) Ion Exchange Resin (5L)

8) Toolbox



Ordered Options:

1) ATW (Automatic Threading Wire System)

2) CAD/CAM Software

3) Water Chiller

4) Automatic Wire Cutting System

5) System 3R Clamping Tools: 3R-200.2J, REF. Element 209 mm

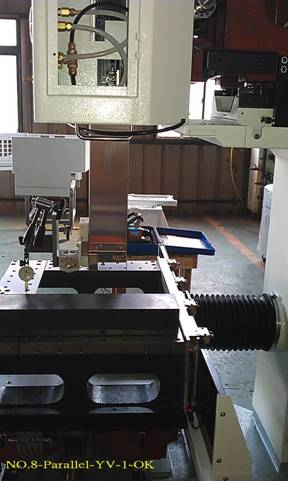

Inspection/Test Run





Packaging/Shipment



Installation/Start-Up/Commissioning

Due to the drawings/pictures were provided by the customers/manufacturers, which is chiefly concerned with some business confidential secrets and intellectual property rights; we need to make them vague without showing very detailed dimensions!



All specification and designs are subject to change without prior notice due to constant research and development.
