PCB Module

Pls provide us with the following:

1) Samples of car lamps (base + cover)

2) 3D model of car lamps (base + cover): in .igs or .stp format

3) LED v.s PCB: relative locations (coordinate)

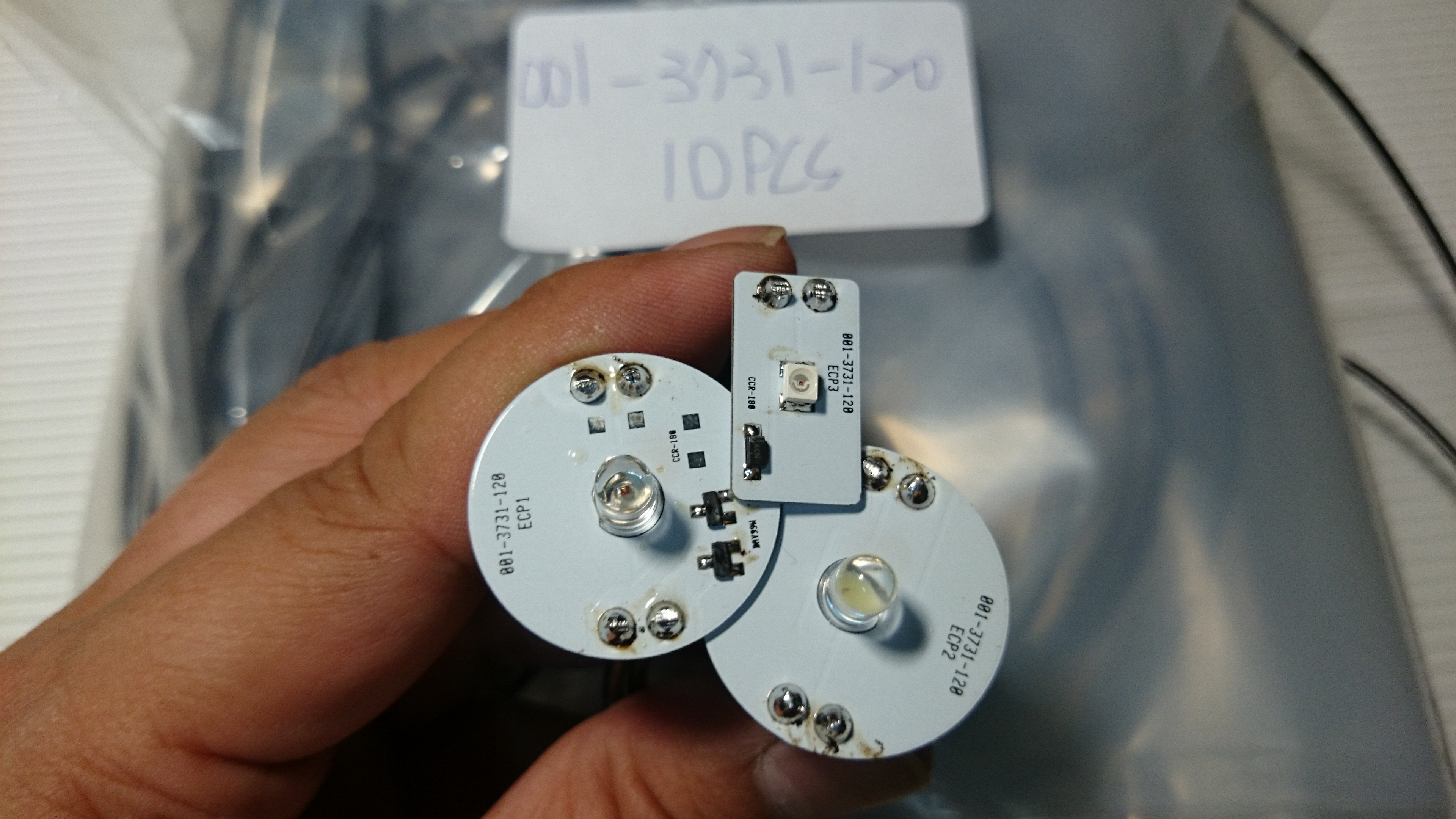

Project NO: 001.3731-120

(RED+WHITE+YELLOW)

Q’TY

DESCRIPTIONS / SPECIFICATION

PCB-FR4-20*1.2*1.0mm (double-ended)

1

PCB-FR4Ø26*1.0mm (double-ended)

2

LED-Ø5LAMP (red)

1

LED-Ø5LAMP (white)

1

LED-3528 (yellow)

1

SMD transistor-SC1623

2

SMD/CCR-20mA

1

Connection Wire-1007/18AWG/10cm

4

Connection Wire-1007/18AWG/40cm

2

Processing Expense

SMT Processing Procedures

14

Penetration welding manually

10

Loss + margin

1

QC + packaging

1

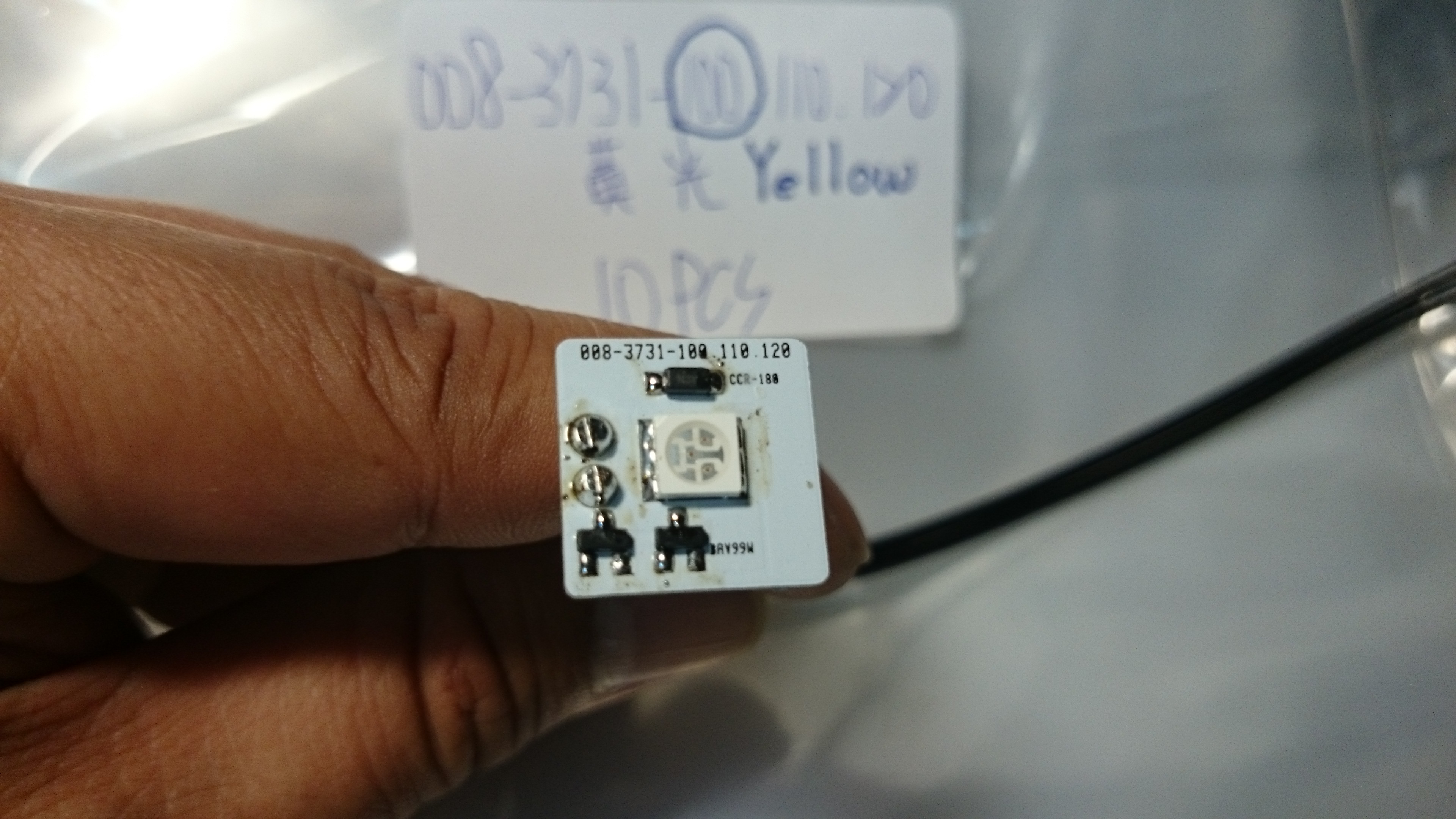

Project NO: 008.3731-100-Yellow

Q’TY

DESCRIPTIONS / SPECIFICATION

PCB-FR4-15.6*15.6*1.6mm (double-ended)

1

LED-5050 (yellow)

1

SMD transistor-SC1623

2

SMD/CCR-20mA

1

Power Wire-1007/18AWG/18cm

2

Processing Expense

SMT Processing Procedures

14

Penetration welding manually

2

Loss + margin

1

QC + packaging

1

Project NO: 008.3731-110-RED

Q’TY

DESCRIPTIONS / SPECIFICATION

PCB-FR4-15.6*15.6*1.6mm (double-ended)

1

LED-5050 (red)

1

SMD transistor-SC1623

2

SMD/CCR-20mA

1

Power Wire-1007/18AWG/18cm

2

Processing Expense

SMT Processing Procedures

14

Penetration welding manually

2

Loss + margin

1

QC + packaging

1

Project NO: 008.3731-120-WHITE

Q’TY

DESCRIPTIONS / SPECIFICATION

PCB-FR4-15.6*15.6*1.6mm (double-ended)

1

LED-5050 (white)

1

SMD transistor-SC1623

2

SMD/CCR-20mA

1

Power Wire-1007/18AWG/18cm

2

Processing Expense

SMT Processing Procedures

14

Penetration welding manually

2

Loss + margin

1

QC + packaging

1

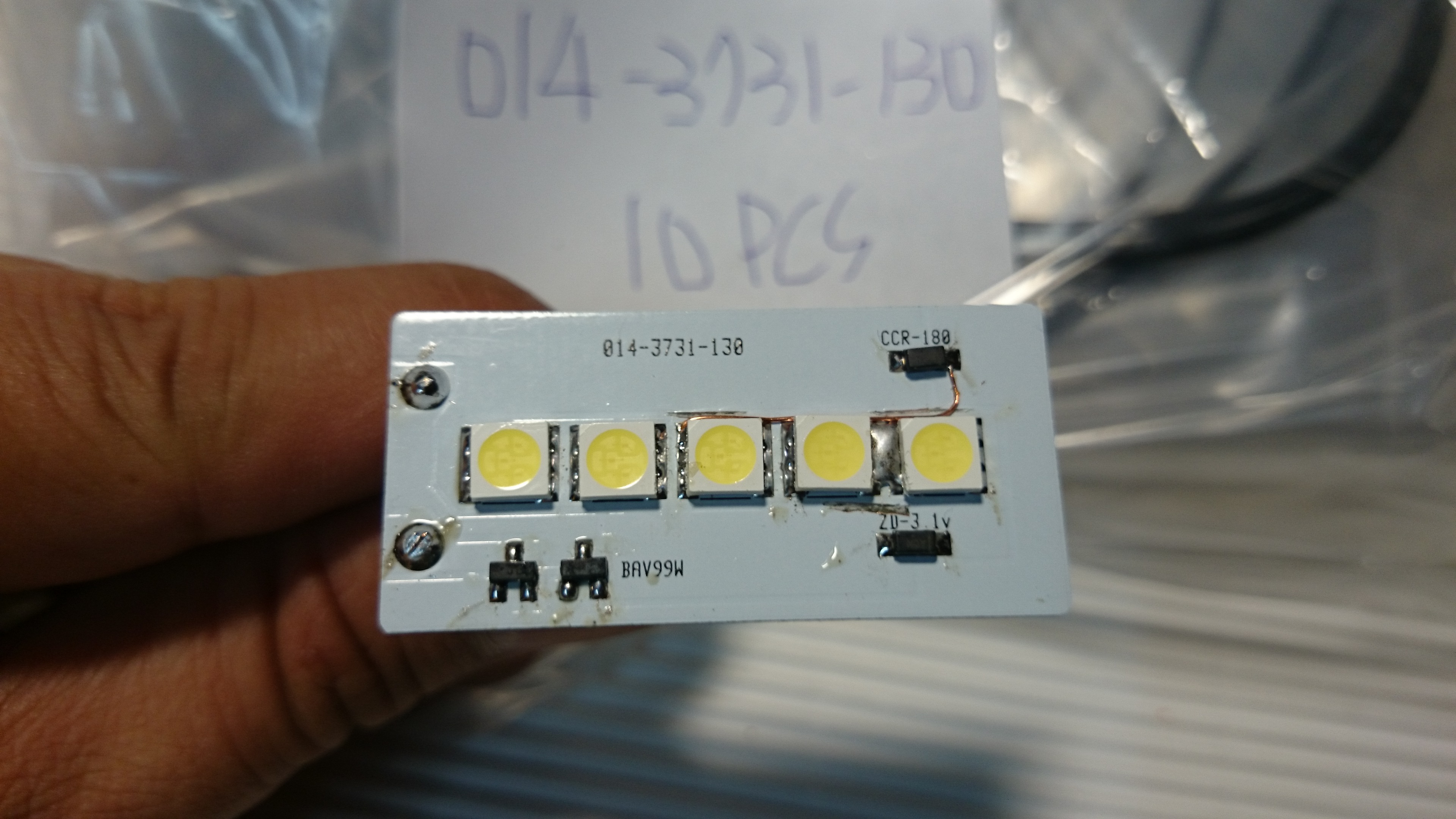

Project NO: 014.3731-130 (WHITE)

Q’TY

DESCRIPTIONS / SPECIFICATION

PCB-FR4-43.7*21*1.6mm (double-ended)

1

LED-5050 (white)

5

SMD transistor-SC1623

2

SMD/CCR-60mA

1

SMD-Zener Diode-0.5W

1

Power Wire-1007/18AWG/18cm

2

Processing Expense

SMT Processing Procedures

30

Penetration welding manually

2

Loss + margin

1

QC + packaging

1

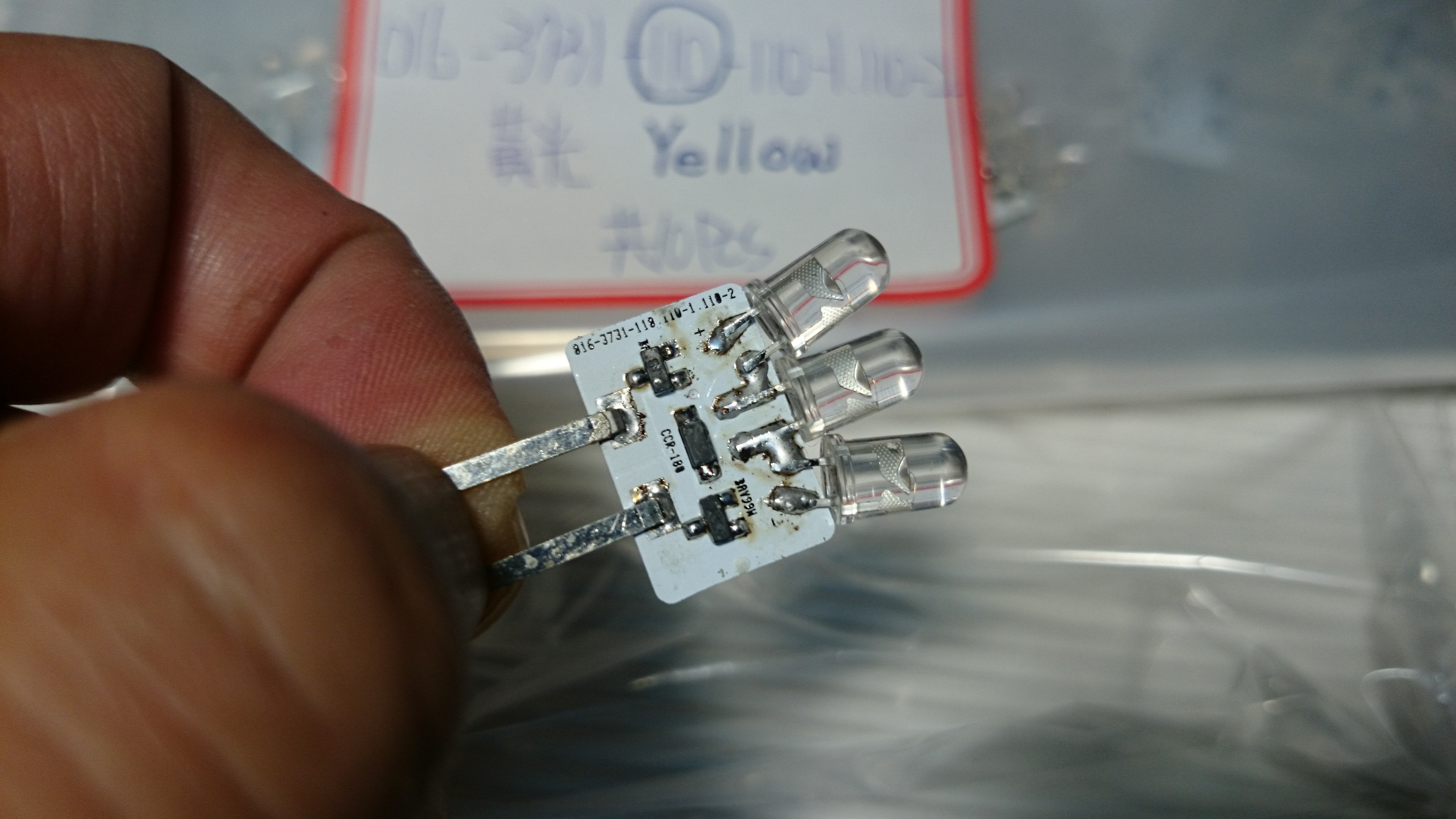

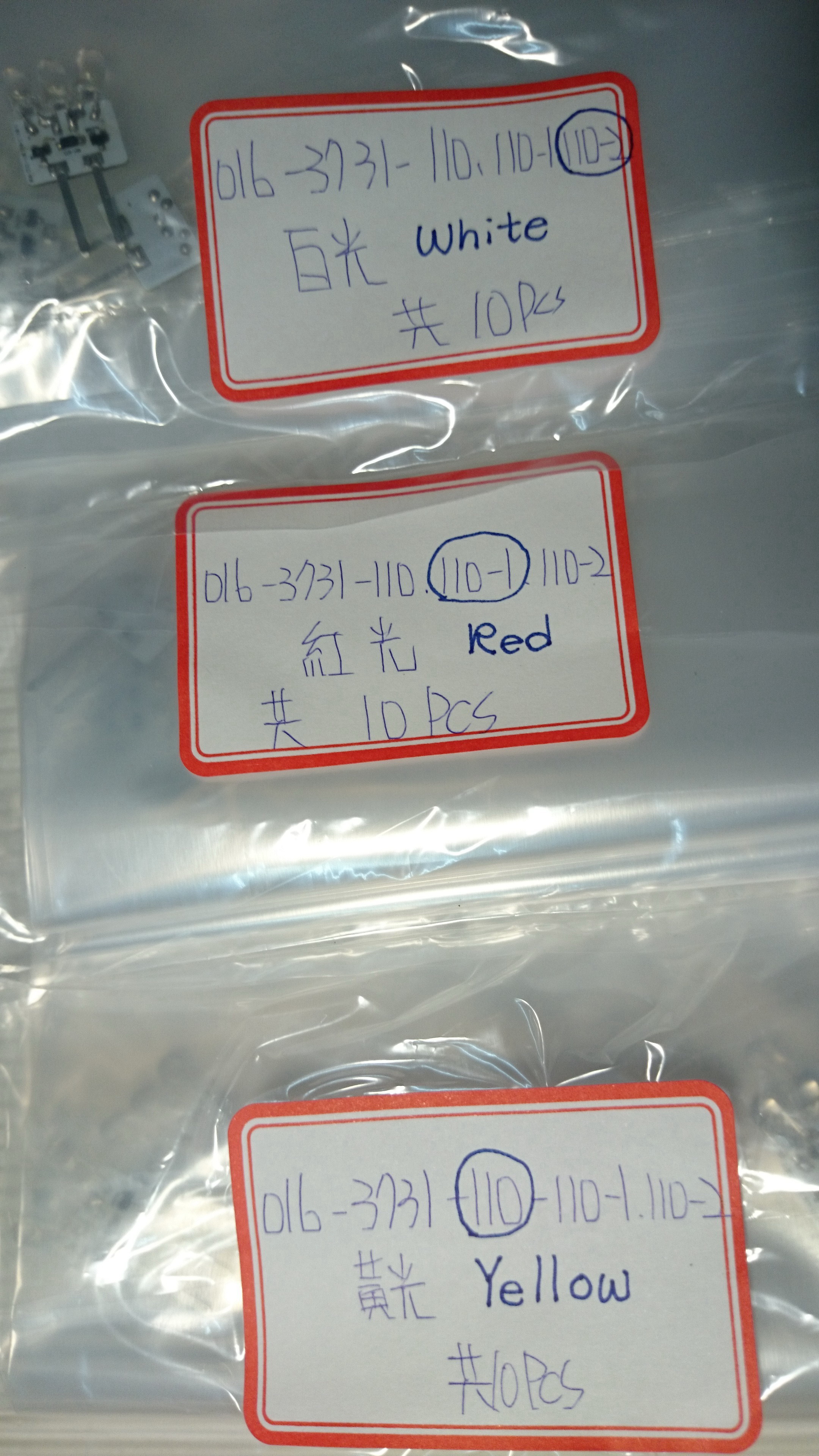

Project NO: 016.3731-110 (Yellow)

Q’TY

DESCRIPTIONS / SPECIFICATION

PCB-FR4-17.5*12*1.0mm (double-ended)

1

LED-Ø5LAMP (yellow)

3

SMD diode-LL4148

4

SMD diode-BZV55C

2

SMD resistor-1206

1

Power Wire Terminal

2

LED legs bending

3

Processing Expense

SMT Processing Procedures

30

Penetration welding manually

2

Loss + margin

1

QC + packaging

1

Project NO: 016.3731-110-01 (RED)

Q’TY

DESCRIPTIONS / SPECIFICATION

PCB-FR4-17.5*12*1.0mm (double-ended)

1

LED-Ø5LAMP (red)

3

SMD diode-LL4148

4

SMD diode-BZV55C

2

SMD resistor-1206

1

Power Wire Terminal

2

LED legs bending

3

Processing Expense

SMT Processing Procedures

30

Penetration welding manually

2

Loss + margin

1

QC + packaging

1

Project NO: 016.3731-110-02 (WHITE)

Q’TY

DESCRIPTIONS / SPECIFICATION

PCB-FR4-17.5*12*1.0mm (double-ended)

1

LED-Ø5LAMP (white)

3

SMD diode-LL4148

4

SMD diode-BZV55C

2

SMD resistor-1206

1

Power Wire Terminal

2

LED legs bending

3

Processing Expense

SMT Processing Procedures

30

Penetration welding manually

2

Loss + margin

1

QC + packaging

1

1) Specimen

Sample price: US$___ for each kind of LED PCBs

Sample Quantity: about __pcs for each LED PCBs

Lead-time: __ working days

2) Mass production

MOQ (minimum order quantity): about ___pcs for each LED PCBs

Lead-time: __ working days
