Auto Loader

　



We provide you with different brands of Auto Loader for you to choose…

Please feel free to contact us should you require any further details~



[Feeding/Dosing/Mixing System]

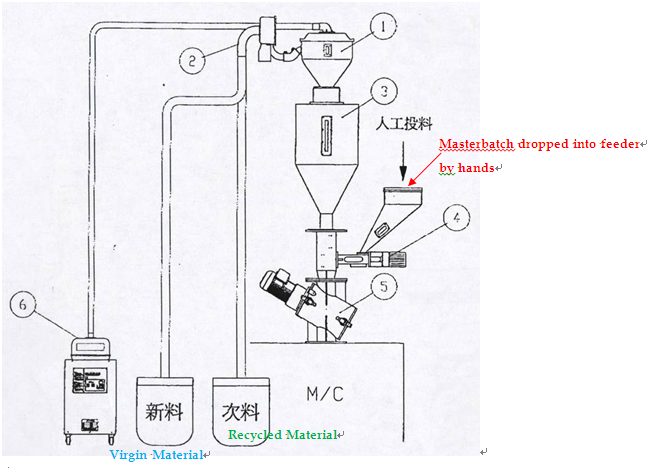

(Option-A)

Descriptions

Model NO

Specification

Q’ty

1

Vacuum Receiver

HS-12-1.5-L3

12Liter; 1.5”; Micro-Switch; Gray

1

2

Proportional Valve

PV-A1-B

1.5”; 200V~240V/1P/50, 60Hz

1

3

Hoper Dryer

HD-T-50-3D

50kg; 220V/3P/60Hz; Gray

1

4

Masterbatch Feeder

MF-A2-BI

220V/1P/50, 60Hz; for Injection

1

5

Mixer

MIXER-A

220V/1P

1

6

Auto Loader

TC-6L-D3

1HP; 220V/3P/60Hz; Gray

1

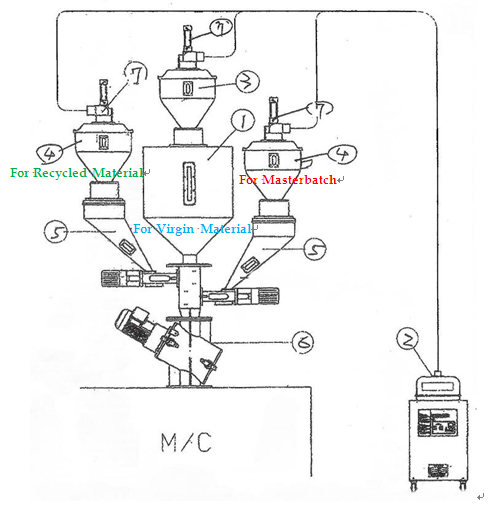

(Option-B)

Descriptions

Model NO

Specification

Q’ty

1

Hoper Dryer

HD-T-50-3D

50kg; 220V/3P/60Hz; Gray

1

2

Auto Loader

TAF-8L-3D-D3

2HP; 220V/3P/60Hz; Gray (1 to 3)

1

3

Vacuum Receiver

HS-12-1.5-L3

12Liter; 1.5”; Micro-Switch; Gray

1

4

Vacuum Receiver

HS-06-1.5-L3

6Liter; 1.5”; Micro-Switch; Gray

2

5

Masterbatch Feeder

(Twin Screws)

MF-2A2-BI

220V/1P/50, 60Hz; for Injection

1

6

Mixer

MIXER-A

220V/1P

1

7

Pneumatic Valve

ACV-S-1.5

1.5”; Stainless Steel

3
